LOCATION：HOME >> PRODUCT >> stainless steel
-
stainless steel
Type 304 Stainless Steel
Grade 304 stainless steel is generally regarded as the most common austenitic stainless steel.It contains high nickel content that is typically between 8 and 10.5 percent by weight and a high amount of chromium at approximately 18 to 20 percent by weight.
Product information
Grade 304 stainless steel is generally regarded as the most common austenitic stainless steel. It contains high nickel content that is typically between 8 and 10.5 percent by weight and a high amount of chromium at approximately 18 to 20 percent by weight. Other major alloying elements include manganese, silicon, and carbon. The remainder of the chemical composition is primarily iron.
The high amounts of chromium and nickel give 304 stainless steel excellent corrosion resistance. Common applications of 304 stainless steel include:
Appliances such as refrigerators and dishwashers
Commercial food processing equipment
Fasteners
Piping
Heat exchangers
Structures in environments that would corrode standard carbon steel.
Stainless steel sheet/ plates with polished surface
|
Stainless Steel Plate/Sheet |
||
|
Product |
Hot rolled stainless steel plate |
Cold rolled stainless steel plate |
|
Thickness |
3.0mm-200mm |
0.3mm-6.0mm |
|
Standard Width |
1240mm/1500mm/1800mm /2000mm/2200mm |
1000mm/1219mm/1500mm |
|
Standard Length |
2438mm/6000mm or as client's requirement |
2000mm/2439mm/3000mm or as per client's requirement |
|
Surface Finish |
No.1,HL,No.4,8K |
2B,BA,No.1,No.4,No.8,8K,mirror, checkered,embossed,hairline, sand blast,stain brush,etching,etc. |
|
Grade |
304,304L,304J1,321,316L,316Ti, 317L,347H,310S,309S,904L,2205 |
304,304L,304J1,321,316L,316Ti, 317L,347H,310S,309S,904L,2205 |
|
Standard |
ASTM,JIS,SUS,GB,DIN |
ASTM,JIS,SUS,GB,DIN |
Technical data
| Element | % Present |
|
Carbon (C) |
0.07 |
|
Chromium (Cr) |
17.50 - 19.50 |
|
Manganese (Mn) |
2.00 |
|
Silicon (Si) |
1.00 |
|
Phosphorous (P) |
0.045 |
|
Sulphur (S) |
0.015b) |
|
Nickel (Ni) |
8.00 - 10.50 |
|
Nitrogen (N) |
0.10 |
|
Iron (Fe) |
Balance |
Mechanical properties
| Property | Value |
|---|---|
| Comprehensive Strength | 210 MPa |
| Proof Stress | 210 Min MPa |
| Tensile Strength | 520 - 720 MPa |
| Elongation | 45 Min% |
Physical Properties
| Property | Value |
|---|---|
| Density | 8,000 Kg/m3 |
| Melting Point | 1450 °C |
| Thermal Expansion | 17.2 x 10-6 /K |
| Modulus of Elasticity | 193 GPa |
| Thermal Conductivity | 16.2W/m.K |
| Electrical Resistivity | 0.072 x 10-6 Ω .m |
|
Category（类别） |
Stainless steel |
|
Product Name |
Stainless coil |
|
Product Photo |
|
|
Category source（分类来源） |
Metals & Alloys>>Stainless Steel>>Stainless Steel Coils |
|
*Place of Origin（*起源地;原产地） |
shandong China |
|
*Standard |
AiSi |
|
*Grade |
300 Series |
|
*Steel Grade |
410, 316Ti, 316L, 316, 410S, 314, 430, 309S, 304, 409L...... |
|
*Surface Finish |
2B |
|
*Delivery Time |
8-14 days |
|
Brand Name（品牌） |
zhishang |
|
Application（应用） |
industry |
|
Thickness（厚度） |
0.2-5.0mm |
|
Width（宽度） |
10-1500mm |
|
Certificate |
JIS, ISO9001 |
|
Tolerance |
±5%, ±1%, ±10% |
|
Processing Service |
Welding, Punching, Cutting, Bending, Decoiling |
|
*FOB Price Unit(eg.pieces) |
Ton/Tons |
|
*Quantity Price |
5-49ton：1676.84 usd |
|
*Payment options |
L/C、T/T、D/P、D/A、Westen、MoneyGra、Paypal |
|
*Logistics Mode |
Expres、Ocean、Land、Air |
|
Port |
qingdao |
|
Supply Ability（eg.10000pieces/month. Unit must be the same as FOB price unit) |
20000ton/month |
|
Packaging Details |
standard packaging |
|
Lead Time |
1 - 500ton/7day |
|
Customized logo (Eg.1000pieces) |
Min. order 25 tons |
|
Customized packaging (Eg.1000pieces) |
Min. order 50 tons |
|
Graphic customization (Eg.1000pieces) |
Min. order 50 tons |
|
Product Description（产品描述） |
ntroduction to stainless steel coil |
|
Technique（技术） |
Hot Rolled |
|
Material（材料） |
stainless steel |
|
Type（类型） |
Coil |
|
Shape（形状） |
Coil |

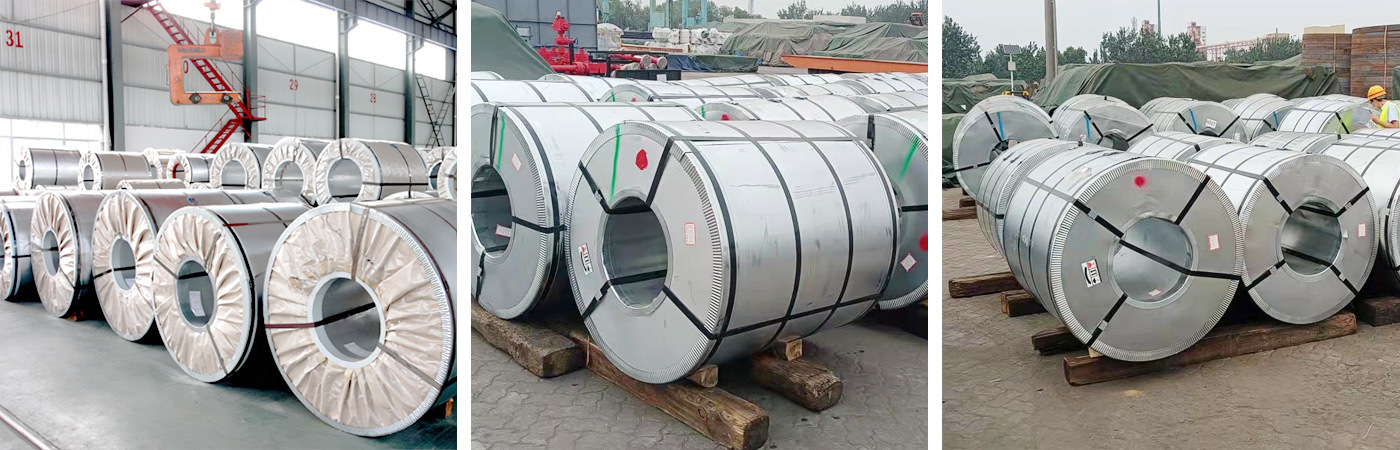

Factory warehouse storage

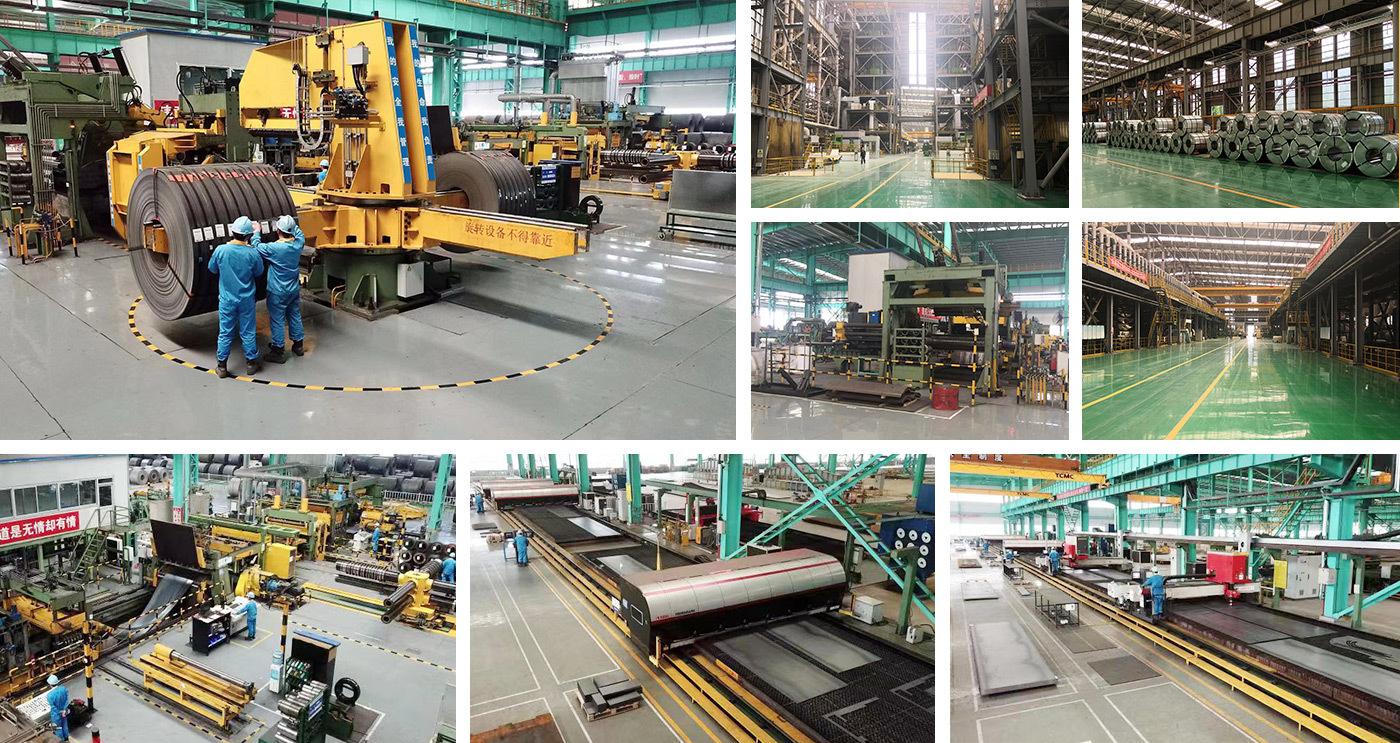

We are committed to providing customers with high-quality and low-price steel products and strives to create additional value for customers as its own responsibility, we have advanced galvanized production lines at guanxian county,liaocheng city and color coated production lines at boxing county,binzhou city,Shandong province with the annual production capacity of 1 million tons,also hold a monthly standing inventory of other steel products more than 50,000 tons.
Packing and delivery
At the same time, we have professional logistics distribution system,which can provide best solution in shipment, our powerful production team can guarantee short time delivery. Our business covers Southeast Asia, the Middle East, Africa, Australia, Europe, the United States and other countries.

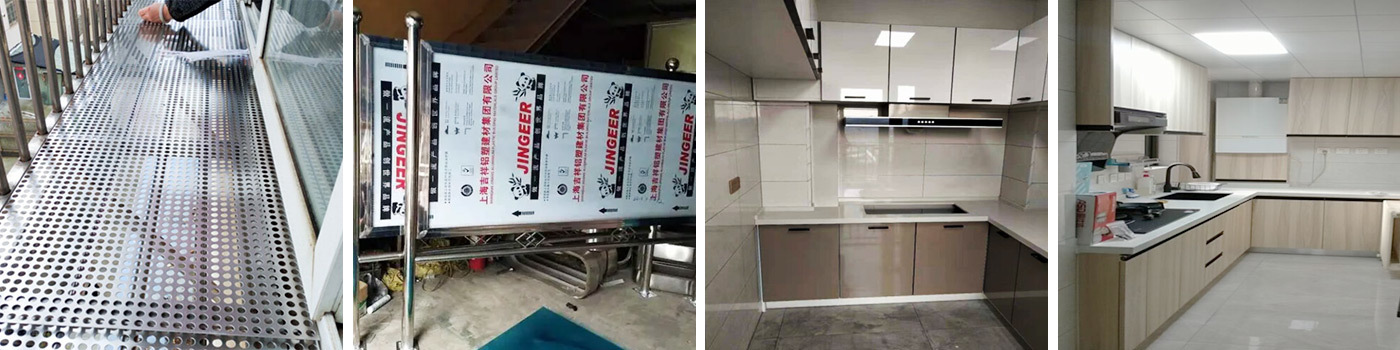

Application case
Shandong zhishang steel company is specialized in steel products such as HR steel,CR steel,wire rod,GI steel,prepainted steel,stainless,H-beam steel,steel tube,seam/seamless steel pipe etc,which is China-calss professional, reliable and outstanding steel supplier.
